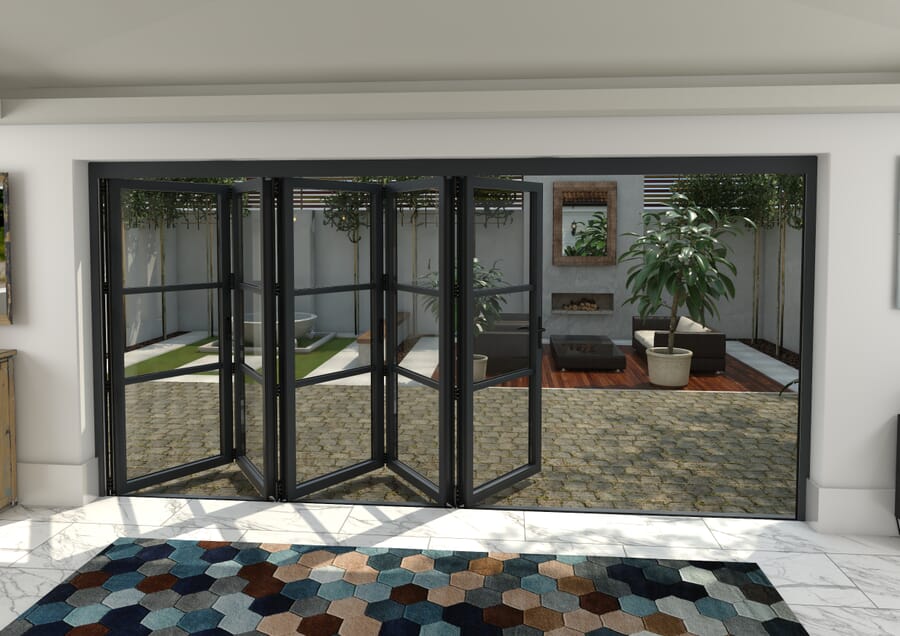

Climadoor Grey Heritage Aluminium Bifold Doors - Part Q Compliant
Select Quantity
Product Description
Climadoor's latest addition to their range is this ultra secure option which offers new-build customers a fully Part Q and Part L compliant Grey Heritage aluminium bifold door. Complete with secure-by-design tested multipoint locking system, and laminated safety glazing, these external bifold doors are a secure and stylish addition to your home. The laminated safety glazing has a U-Value of 1.0W/m2K. These sets give you excellent security, good durability and are pre-manufactued and supplied as frame, door leaves and glass units with all hardware ready fitted for ease of installation. They are supplied with a full set of fitting instructutions to show you how to install the frame and doors into the opening, with a typical 3 door system taking less than a day to fit into a pre prepared opening. Please note the glazing is supplied loose due to the weight during installation and handling, and we strongly recommend you use a professional installer for the set, glazing and glazing bars. Made-to-measure options are also available. Please email Sales@ email address for your quote. We also offer a range of thermally broken aluminium double glazed windows, to complement our Aluminium bifolding patio patio doors, which are ideal if you are building either extensions or a complete new property. Please contact us for details.
Futher Information
- Brickwork Opening: 2105 x 4205mm
- Door Pattern: 5 Right
- Code: HERGRYALIBI42005RPTQ
Specification
| Material | Thermally Broken Aluminium |
|---|---|
| Cill Spec
i
The cill is the bottom part of any window or door that sits onto the brickwork at the bottom of the opening. This is designed to ensure water that runs down the window or door doesn’t run down the brickwork, preventing mould growth and dampness. Cill measurements are taken from the inside of the window or door frame, to the outermost edge
|
175mm Integrated Sill |
| Finish
i
Unfinished – the doors are manufactured in untreated material state, with no sealant applied. These doors need to be lightly sanded and decorated by the end user.
Primed – Doors which have been lightly sanded and had a primer coat applied, but still need further coat(s) to seal the door or to achieve the final colour you desire. Prefinished / Fully Finished – These doors have been factory decorated and don’t need any further decoration. |
Anthracite Grey |
| Part L Compliant
i
Part L (also known as Approved Document L) of the Building Regulations in the UK sets minimum standards for the energy efficiency of new and existing buildings. The regulations apply to anyone involved in designing, constructing, or renovating buildings. The Thermal performance of a door is stated as a U-Value. The lower the U-Value the better the thermal performance. In building refurbishment situations, windows or doors should meet or exceed 1.4w/m2K, or have an Energy Rating Level B. In new build situation, the target U-Value is usually 1.2w/m2K.
|
Yes |
| U-Value
i
This is the measurement of thermal performance of a product, and covers all elements of that product, inc glass and materials. The lower the U value the better the performance of the product.
|
1.4W/m²K |
| Security | PAS 24 Rated multipoint locking system |
| Glazing | Laminated Security Double Glazing |
| Guarantee | Aluminium 20 Years, Glazing 10 Years |
| Hardware | Black Handles and Hinges |
| Opening Options | Folding to the Left, Or Right |
| Part F Compliant
i
Part F (also known as Approved Document F) of the Building Regulations in the UK covers ventilation, air quality, and condensation prevention in all buildings. Part-F Compliant products ensure that (often through being supplied with trickle vents) buildings have adequate ventilation to replace indoor air with fresh air from outside.
|
Yes |
| Part Q Compliant
i
Part Q (also known as Approved Document Q) of the Building Regulations covers the security of dwellings. This standard outlines the requirements for the levels of security any manufacturer needs to comply with to prevent forced entry. It covers the products overall design strength, the locking mechanism the the glass type used as well as other things. Different to PAS24 compliance.
|
Yes |
| Weather Tested
i
Products are tested to ensure they prevent air ingress, water ingress, and provide resistance to wind loading.
|
Yes |
